Specification of metal pallet rack
|Similar design, different sizes|
|Model No.||Exterior Dimension||Loading Capacity||Finish||Quantities||Total container|
|M1-Base||1395x1060x310||1500||Hot dip zinc||250||1x40'HQ|
|M1-Post||1200x60x2.5||Hot dip zinc||1000|
|M2-Base||1875x1060x310||1500||Hot dip zinc||150||1x40'HQ|
|M2-Post||1200x60x2.5||Hot dip zinc||600|
|M6-Post||2100x60x2.5||Hot dip zinc||640|
|Material||Mild steel Q235|
|Application area||Warehouse, logistic, recycling, etc.|
|Remark||Costomized or OEM support|
|Key features||1.Strong tubular steel - stack up to 4 high|
2.Removable arms - fully collapsible, save space, easy storage when not in use
3.Cup feet - easy stacking
4.Hot-dip galvanized finish - corrosion resistant, suitable for outdoor use
Heavy duty warehouse hot dip galvanized movable metal stacking rack
"C" channel on base, load 1500kg, hot dip galvanized, forklift guide can be added.
Benefits of storage stacking pallet racking

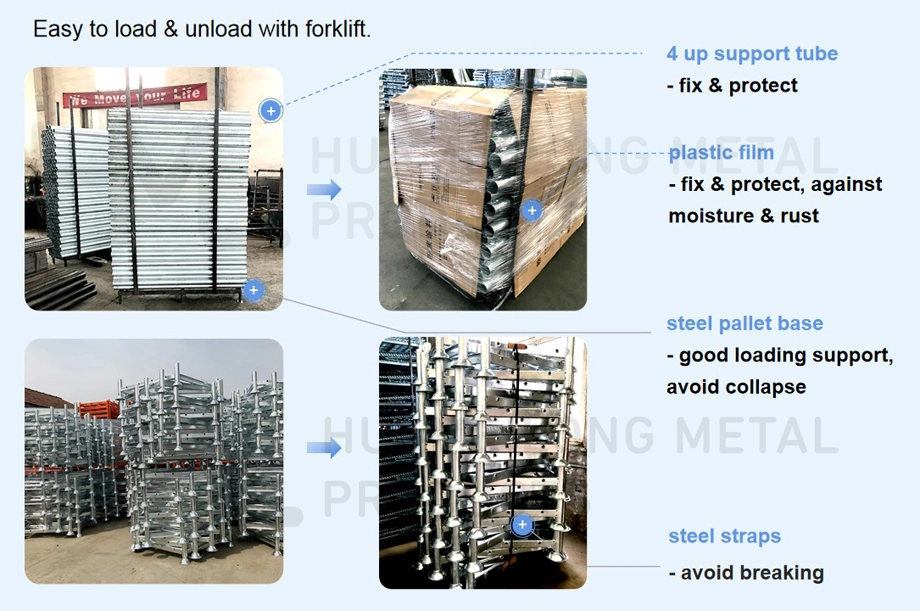

Application ,loading & packaging of steel post pallet
1, What is the material being used for your products?
Mild steel Q235, Q195
2, How is the goods being packed?
Plastic banding + Stretch film wrapped, palletized for easy loading and unloading with standard forklift truck or pallet jack.
3, What is the payment terms I can get?
TT or L/C at sight, DP etc
4, What kind of finish do you provide for your goods?
A.Electrol galvanized/Zinc plated: the zinc serves as a sacrificial anode( indoor storage)
B.Hot dip galvanized: it forms a coating of corrosion resistant zinc (indoor/outdoor and cold storage)
C.Powder coating: a type of coating that is applied as a free-flowing, dry powder(indoor/outdoor storage)
5, What is the loading capacity?
In general, we have light duty(100~300kg) model,medium duty(400~800kg) model
and heavy duty(1000~1700kg) model available for your choice.
6 Which product can be used in cold storage?
Mobile rack,wire container and roll cage are all widely used in cold storage.
7 I like your design, but couldn't find the right model from the products list, is custom size available?
Yes, we do custom products and projects.
8 I would like to have my own design products and qty is not that big, is it ok?
Yes, we can go with your custom design, no matter small or big qty, however, pls
understand the cost will be different.
9 I don't have drawing or picture available for the custom products, could you design it for me?
Yes, we can make the best suitable design for you but do need to know the details, such as
a) dimension b) loading capacity c)stackability d)operation environment
10 What is the minimum quantity I can order?
1x20'GP - qty is variable depend on the size
11 What is your average production lead time?
2-3 weeks against formal order and deposit.
12 Do I get any guarantee from your company?
3~10 years warranty in case that
A) Proper handling during operation, correctly forklift handling while stacking/unstacking
B) Overloading is prohibited
C) Environment request indoor, dry and not humid circumstance, do not contact with any corrosive chemical
material (for zinc plated and powder coated products, no limitation for hot dip galvanized)
